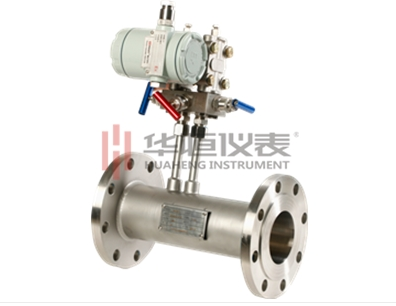

V锥形流量计是一种根据质量守恒定律和能量定恒定律来测量管内流体流量的差压式仪表。它创新性地利用悬挂在管道中心处的V型锥作为节流件，这一结构具有自整流和自清洁的独特优点，是一种用途广泛的新型仪表。



　　The V-cone flowmeter is a differential pressure instrument that measures the flow of fluid in the pipe according to the law of conservation of mass and the law of energy.It innovatively uses the V-shaped cone suspended in the center of the pipeline as a throttle.This structure has the unique advantages of self-rectification and self-cleaning,and is a new type of instrument with a wide range of uses.



　　V锥流量计的具有以下特点：



　　The V cone flowmeter has the following characteristics:



　　1.V锥流量计自清洁功能，当流体经过V型锥时，管道中心流速变慢，管壁附近的流速加快，使污垢不易沉积在节流件上，有利于测量的准确与稳定。



　　1.The self-cleaning function of the V-cone flowmeter.When the fluid passes through the V-cone,the flow velocity in the center of the pipe slows down,and the flow velocity near the pipe wall is accelerated,so that dirt is not easy to deposit on the throttle,which is beneficial to the accuracy and stability of the measurement.



　　2.V锥流量计自整流功能，V型锥这种能使管道中心流速变慢，管壁附近的流速加快的特点，有效改善流体流速的分布，达到自整流作用，极大缩短前后直管长度，只要达到前0-3DN，后0-1DN即可。



　　2.The self-rectifying function of the V-cone flowmeter.The V-cone has the characteristics of slowing down the flow velocity in the center of the pipe and speeding up the flow velocity near the pipe wall,effectively improving the distribution of fluid flow velocity,achieving self-rectification and greatly shortening the front and rear straight pipes.Length,as long as it reaches the first 0-3DN and the last 0-1DN.



　　3.耐磨性能好，长期稳定性好，测量重复性高。



　　3.Good wear resistance,good long-term stability,and high measurement repeatability.



　　4.特殊结构压损小，其压力损失为孔板1/3-1/5。量程比为10：1。



　　4.The pressure loss of the special structure is small,and the pressure loss is 1/3-1/5 of the orifice plate.The turndown ratio is 10:1.



　　5.特殊结构适合测量低静压，低流速的流量。



　　5.The special structure is suitable for measuring low static pressure and low flow velocity.



　　6.由于锥形流量计的独特结构，在很多情况下，它被作为混合器使用。



　　6.Due to the unique structure of the cone flowmeter,it is used as a mixer in many cases.



　　7.适用工作温度高850度，压力最大42Mpa，若选用特殊材质，范围更高。



　　7.The applicable working temperature is 850 degrees,and the maximum pressure is 42Mpa.If special materials are selected,the range is higher.



　　8.为方便用户使用，我公司V锥流量计有一体与分体结构。



　　8.For the convenience of users,our company's V-cone flowmeter has an integrated and split structure.



　　9.智能一体V锥流量计，采用先进的电路设计，功能强大，微功耗，大屏幕液晶屏显示流量信息，内部先进存贮器保证数据安全。



　　9.The intelligent integrated V-cone flowmeter adopts advanced circuit design,powerful functions,low power consumption,large-screen LCD screen displays flow information,and advanced internal memory to ensure data security.



　　10.一体化V锥流量计系统，可以使用电池供电与外24VDC供电，输出4-20mA,脉冲信号，有HART协议。



　　10.The integrated V cone flowmeter system can use battery power supply and external 24VDC power supply,output 4-20mA,pulse signal,and have HART protocol.



　　以上就是关于“V锥形流量计优点—V锥流量计厂家”详细概述，如有关于流量计方面的问题咨询，请联系我们！



　　The above is a detailed overview of"V-cone flowmeter advantages-V-cone flowmeter manufacturers".If you have any questions about the flowmeter,please contact us！
